当前位置：首页 > Products > Drying equipment series
Drying equipment series
-
GSL solid preparation production…
The new type of solid preparation drying combined line is designed in combination with the characteristics of domestic solid preparation technology. It is a new type of joint operation process. It combines wet granulating, wet whole grain, boiling drying, dry whole grain, material transportation and mixing. It is suitable for the front process of tablet and capsule and so on. The production of granules.
-
SZG series double cone rotary va…
SZG double cone vacuum dryer is a new generation drying device developed by our factory in combination with domestic similar product technology. SZG double cone vacuum has two-stage elastic coupling method of belt and chain, so the equipment runs smoothly. The specially designed tooling fully embodies the good concentricity of the two shafts. The heat medium and vacuum system are all made of reliable American technology rotary joints. On this basis, we have developed SZG-A, which can be used for both stepless speed regulation and constant temperature control. As a professional drying equipment manufacturer, we serve more than 100 units per year. Our products are made from high-temperature heat-conducting oil, medium-temperature steam and low-temperature hot water. When drying viscous materials
-
ZLPG series Chinese medicine ext…
The machine is fully enclosed, all parts are made of stainless steel, equipped with a three-stage purification device, and the filtered air reaches 100,000 levels. Simplified and top equipped with cold wall device, the wall temperature is <80 °C, the material stays on the wall and does not coke and deteriorate, which greatly increases the powder collection rate (up to 95%), and does not produce mixed drugs and sticky walls. phenomenon.
-
WHZG series microwave rotary vac…
When the material is under vacuum, it is placed on the hanger for the rotary motion to absorb the microwave energy, so that the internal moisture of the material evaporates rapidly at low temperature to achieve the purpose of drying.
-
CT-C series hot air circulation …
It is suitable for heat curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, raw drugs, Chinese herbal medicine pieces, extracts, powders, granules, granules, water pills, packaging bottles, pigment dyes, dehydrated vegetables, dried melons, sausages, plastic resins, electrical components, baking varnish and so on.
-
SGM series double purification d…
The company has accumulated long-term experience in designing and manufacturing various electric sterilization boxes, digesting and absorbing the advantages of similar foreign products, and combining with China's national conditions, carefully designed and developed the GM100-series dry heat sterilization (except heat source) box (device ). The device meets the requirements of FDA, GMP and US Federal Standard 209E, and provides reliable assistance for GMP transformation and FDA verification in the domestic pharmaceutical industry.
-

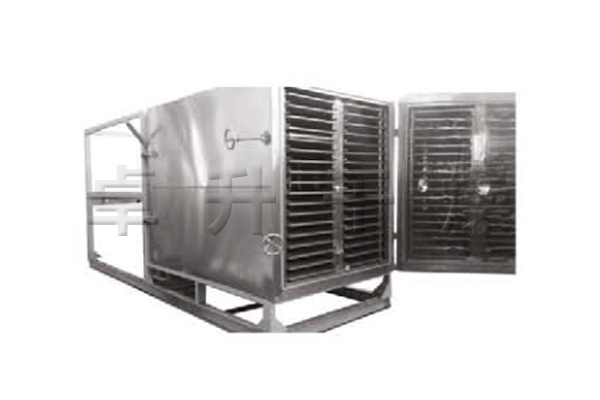

ZDG series vacuum freeze dryer
The company's vacuum drying device is designed for the existing conventional vacuum drying and oven, and is designed and upgraded. It is manufactured using the principle of vacuum drying. The structure is compact and reasonable, the maintenance is convenient, the automatic control and the operation are simple; under the same material heating temperature, compared with the conventional vacuum drying and the oven, the drying speed is fast (the time is shortened by 3-10 times), and the energy consumption is low (low 2 -3 times): Wide drying temperature range (
-
HG series (single drum and doubl…
The drum dryer is an internal heating conduction type rotary continuous drying device. The rotating drum adheres a film of a thickness through the lower trough, and the heat is transported through the pipeline to the inner wall of the drum, is conducted to the outer wall of the drum, and then the feed film is transferred, so that the moisture in the film is evaporated, dehumidified, and The moisture-containing material is dried. The dried material is scraped off the drum by a scraper placed on the surface of the drum, to the screw conveyor placed under the scraper, and the dry material is concentrated and packaged by a screw conveyor.
-
PLG series disc continuous dryer…
The disc continuous dryer is an efficient conductive continuous drying equipment. Its unique structure and working principle determine its high thermal efficiency, low energy consumption, small footprint, simple configuration, convenient operation control and good operating environment. It is widely used in chemical, pharmaceutical, pesticide, food, feed and agriculture. Drying operations in industries such as by-product processing. It has been well received in practice in various industries.
-
JYG series hollow blade dryer
The product can indirectly heat or cool the paste, granule, powder, and slurry materials, and can complete unit operations such as drying, cooling, heating, sterilization, reaction, and low temperature combustion. The special wedge-type stirring heat transfer blade in the equipment has high heat transfer efficiency and self-cleaning function of the heat transfer surface.
-
DWT系列脱水蔬菜干燥机
干燥的典型物料有：蒜片、南瓜、胡萝卜、魔芋、山药、竹笋、辣根、洋葱、苹果等。
-
DW系列多层带式干燥机
DW系列多层带式干燥机适用于大规模生产干燥速率较低的难干燥物料，设备结构紧凑，占地面积小，操作简单，维护方便、运行稳定。可根据物料的干燥特性设计成不同的热风循环干燥形式，是热风循环烘箱的延伸和改进，广泛应用于冶金助剂、化工、食品、包装等领域。随着企业技术进步，产品技术含量的提高，多层带式干燥机已具备满足大生产、多元化、集中控制、连续生产的能力。具有高效、节能、易于管理的优势。
