Other equipment series
-

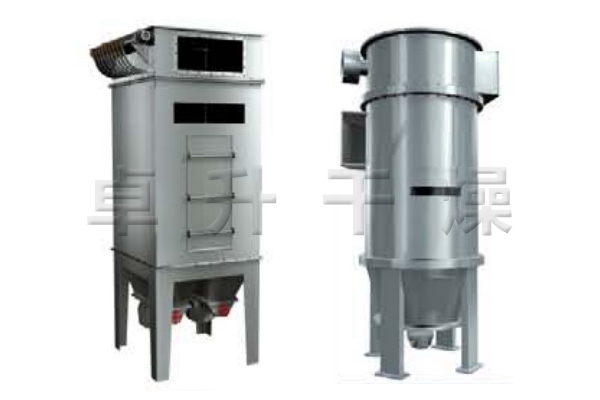

MC series pulse bag filter
After the dusty airflow enters the lower tank from the air inlet, it partially settles. When the slight dust floats, it is retained by the filter bag. The purified air passes through the filter bag, enters the upper tank through the venturi, and is discharged from the air outlet. The dust accumulated on the outer wall of the filter bag is increasing. When the force is limited (usually 80-120 mm water column), the dust accumulated on the outer wall of the filter bag is removed. The cleaning is triggered periodically by the controller. Each control valve opens the fat flushing valve, so that the compressed air in the air bag passes through the blowing pipe hole to make the bag expand rapidly in an instant, and the powder is shaken off with the reverse action of the air flow.
-

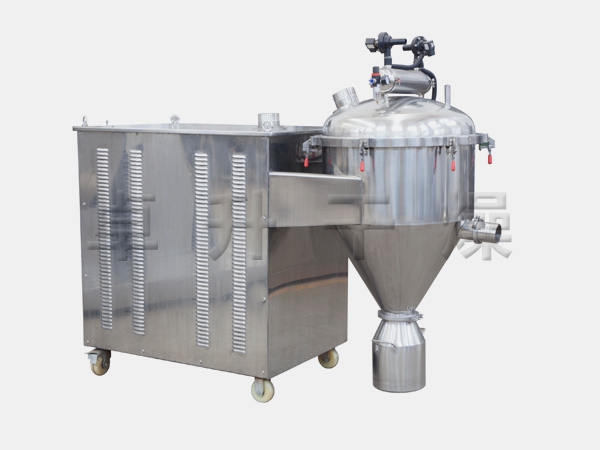

QZS airflow vacuum feeder
The pneumatic vacuum feeder uses the compressed air to generate high vacuum through the vacuum generator to realize the material transportation. It does not need a mechanical vacuum pump, and has the advantages of simple structure, small volume, maintenance-free, low noise, convenient control, elimination of static electricity of materials and Meet the requirements of GMP requirements. The high vacuum generated by the vacuum generator prevents the layered phenomenon of the material to be conveyed, and ensures the uniformity of the composition of the mixture. It is a tableting machine, a capsule filling machine, a dry granulator, a packaging machine, a pulverizer, a vibrating screen. The preferred device for automatic feeding.
-

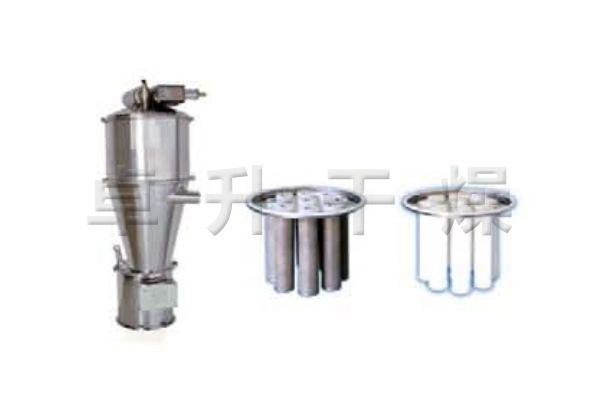

ZSL series vacuum feeder
ZSL-III series vacuum feeding machine is the third generation of new vacuum feeding machine developed by our company. It has fast feeding speed, long service life, convenient operation, clean and sanitary, and meets GMP requirements.
-

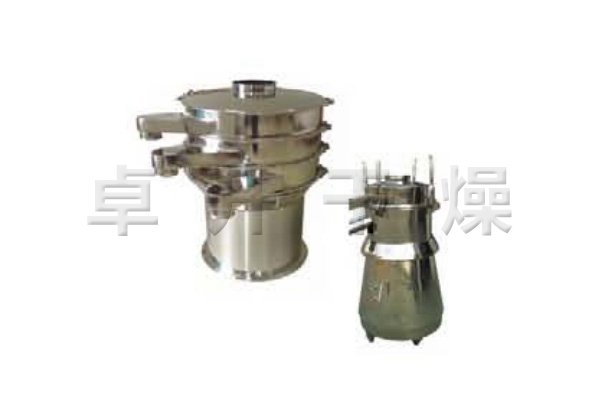

ZS series vibrating screen
● ZS series stratified screen is suitable for running water, and it is an ideal equipment for sifting and discharging continuously. ● This unit consists of a hopper, an oscillating chamber, a coupling, and a motor. The oscillating chamber has an eccentric wheel, a rubber cushion, a main shaft, and a bearing. The adjustable eccentric weight is driven by the motor to the center line of the main shaft. In the unbalanced state, centrifugal force is generated to change the material strength to form an orbital vortex in the screen. The amplitude of the weight regulator can be adjusted for different materials and screens. ● The whole machine has compact structure, small volume, no dust, low noise, high quality, low energy consumption, convenient movement and maintenance.
-

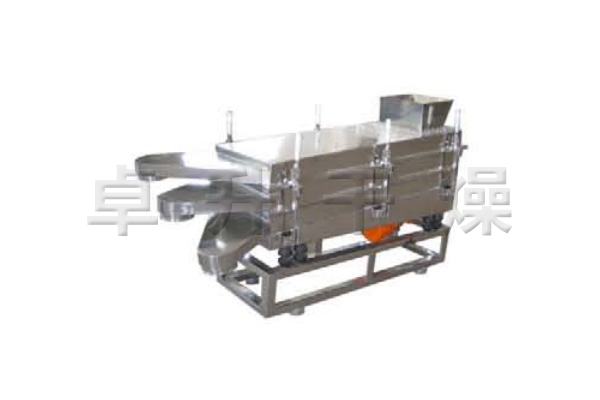

ZF series square sieve
The upper part of the machine adopts quick-release handle, which connects the whole machine into one whole. The upper cover is fully sealed, which effectively prevents dust from flying due to vibration during material screening. The vibration motor is installed in the lower part of the sieve body, which effectively ensures the compact structure of the material, and the spring is used for vibration reduction in the lower part, so that the whole machine works in a stable state. The bottom base is adjustable to adjust the angle of the screen surface when the screen is being screened, and to achieve the best screening effect according to the material characteristics.
<1>
